Examples

1) GHZ Circuit

Overview

This example demonstrates the use of the package for creating a Greenberger–Horne–Zeilinger (GHZ) state circuit.

Example

Step 1: Collect Quantum Operations

Define quantum operations to prepare the GHZ state.

using BlueTangle

# Quantum gates
hadamard = Op("H", 1) # Hadamard gate on the first qubit
cnot1 = Op("CNOT", 1, 2) # CNOT gate between first and second qubits
cnot2 = Op("CNOT", 2, 3) # CNOT gate between second and third qubits

ops = [hadamard, cnot1, cnot2] # Collect operators

Step 2: Create Quantum Circuit

Next, we compile these operations into a quantum circuit and check its properties.

circuit = compile(ops) # Create a quantum circuit
println("Circuit stats:", circuit.stats)

2) Measurement and Correlations

Overview

This section explores two methods for obtaining measurement data and correlations from a quantum circuit, showcasing two distinct approaches:

Sampling Measurement: This approach involves approximating values by taking multiple samples from the quantum circuit.
Exact Calculation using Density Matrix: This method uses the density matrix of the circuit for precise calculations.

Measurement - Sampling Approach

Perform measurements through sampling and analyse the results. For more details on this function, see measure.

shots = 1000
measurement1 = measure(circuit, shots) # Sample the circuit

println("Attributes of the measurement object",fields(measurement1))

# Output measurement details
println("Expectation values:", measurement1.expect)
println("Total magnetization moments:", measurement1.mag_moments)

# Calculate correlations: ⟨Z₁Z₂⟩
correlations1 = correlation(measurement1, [1, 2])
println("Correlations:", correlations1)

Measurement - Exact Approach using Density Matrix

Alternatively, we can use the density matrix for exact calculations. Similar one can use state vectors as well, see to_state.

density_matrix = to_rho(circuit)

# Calculate exact expectation values and correlations
expect2 = expect(density_matrix, "Z")
correlations2 = correlation(density_matrix, "Z,Z", [1, 2]) # Calculate correlations: ⟨Z₁Z₂⟩

println("Exact expectation values:", expect2)
println("Exact correlations:", correlations2)

Calculations in Different Bases

With the exact density matrix, we can explore correlations in different bases, unlike the sampling measurement.

expect3 = expect(density_matrix, "Y")
correlations3 = correlation(density_matrix, "Z,X", [1, 3])

println("Expectation values <Y>:", expect3)
println("Correlations <Z₁X₃>:", correlations3)

This example highlights the flexibility and power of the package in quantum circuit analysis and simulation.

3) Plot Circuits and Measurements

The plotq function is designed to create visual representations of quantum circuits, while the plotq function displays the results of quantum measurements. Both of these functions are dependent on the PyPlot package.

Example

Step 1: Define and Compile a Quantum Circuit

Create a simple quantum circuit for demonstration.

using BlueTangle
include(pathof(BlueTangle) * "../../extra/pyplot.jl")

# Quantum gates for a basic circuit
hadamard = Op("H", 1)
cnot12 = Op("CNOT", 1, 2)
cnot23 = Op("CNOT", 2, 3)

# Compile the circuit
circuit = compile([hadamard, cnot12, cnot23])

Step 2: Visualize the Circuit

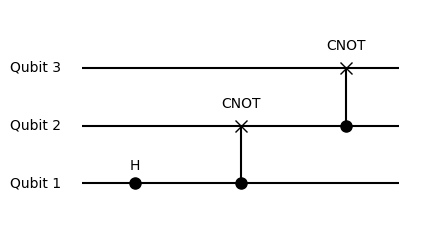

Use plotq to visualize the circuit structure.

plotq(circuit)

Step 3: Perform Measurements and Analyze Results

Conduct measurements on the circuit and examine the outcomes.

measurement = measure(circuit, 1000) # Sample the circuit 1000 times

Step 4: Plot Measurement Results

Visualize the measurement data using plotq.

plotq(measurement)

Troubleshooting Plotting Issues

If you encounter problems with plotting, please follow these steps:

Install PyPlot in Julia: Add the PyPlot package to your Julia environment. This package provides an interface to the matplotlib library in Python. You can install it using the Julia package manager:

import Pkg
Pkg.add("PyPlot")

Install Python Matplotlib: Ensure that matplotlib is installed in your Python environment. This is a prerequisite for PyPlot as it relies on Python's matplotlib for plotting. You can install matplotlib using pip:

pip3 install matplotlib

For detailed documentation and additional information, refer to the PyPlot GitHub page.

4) Noise Models and Circuits

Overview

This example shows how to create noisy quantum circuits using predefined quantum noise models. The package offers precise control over each quantum operation, allowing for different noise models for individual operations or overall models for single and two-qubit operations.

Predefined Noise Models

amplitude_damping: Simulates energy loss in a quantum system. Parameter γ (given by p) indicates the excitation loss probability.
phase_damping: Loss of quantum information without energy loss. Parameter γ quantifies the likelihood of a phase shift.
phase_flip: Introduces phase errors (Z error) with probability p.
bit_flip: Causes state flips (X error) with probability p.
bit_phase_flip: Combines bit and phase flips, applying Y error with probability p.
depolarizing: General error model where any Pauli operation (X, Y, Z) can occur with equal probability. Parameter p is the overall error probability.
rot_X, rot_Y, rot_Z, rot_P: Coherent errors (incorrect rotations) around respective axes. Parameter p specifies rotation error magnitude.

Implementing Noise in Circuits

The code below demonstrates how to create a noise model for single qubit gates. The second parameter defines either the amplitude or the probability of the noise model, depending on the selected model. For example:

noise_model1 = Noise1("bit_flip", 0.001)

In this instance, Noise1 constructs a noise model for single qubit operations, specifically a bit flip error, with a probability of 0.001 (or 0.1%).

Similarly, a noise model for two-qubit operations can be created:

noise_model2 = Noise2("depolarizing", 0.01)

Here, Noise2 is applied to create a depolarizing channel noise model for two-qubit gates, with an error probability of 0.01 (or 1%).

We can now create the NoiseModel as following

nm=NoiseModel(n1,n2)

#Alternatively following constructions give the same result

nm=NoiseModel("bit_flip", 0.001,"depolarizing", 0.01)
nm=NoiseModel(["bit_flip", 0.001],["depolarizing", 0.01])

Next, we will illustrate incorporating these noise models into a quantum circuit.

ops = [Op("H", 1), Op("CNOT", 1, 2), Op("CNOT", 2, 3)]
noisy_circuit = compile(ops, Options(noise=nm))

5) Custom Noise Models and Gates

Overview and Examples

Predefined constant gates, such as gate[:X], gate[:CNOT] or gate.T, can be easily accessed. For more details, see gate.
Phase (P) and rotation gates (RX, RY, RZ) can be accessed through gates1("RX(.3)"), or the controlled phase gate via gates("CP(.3)"). Refer to gates and gates for more information. Additionally, all single qubit rotations can be created using U gates with Euler angles, as detailed in _P, _U2, and _U3.
For custom defined gates, you can construct your own unitary matrix and create an Op object using the following constructor: Op("name_of_my_gate", matrix, qubit).
To create a custom noise model, define your own Kraus operators for a single qubit model using QuantumChannel(1, "name_of_model", 0, vector_of_kraus_matrices) or for a two-qubit model with QuantumChannel(2, "name_of_model", 0, vector_of_kraus_matrices). It's important to first check if your Kraus operators satisfy the trace-preserving condition using the is_valid_quantum_channel function. Alternatively, you can use the simpler constructor custom_noise(q, name_of_model, vector_of_kraus_matrices), where q is either 1 or 2 for single and two qubit gates, respectively.

6) Conditional Mid-Measurements

Overview

This section introduces the concept and implementation of conditional mid-measurements in quantum circuits. Mid-measurements are powerful tools that allow for conditional execution of quantum operations based on the results of measurements made during the circuit's execution. The application of the Born rule in these measurements adds a probabilistic dimension to the circuit's behaviour.

Conditional Mid-Measurements with `ifOp`

The ifOp function enables conditional mid-measurements. For instance, consider a mid-measurement in the X basis for the first qubit, followed by conditional operations:

mid_measurement = ifOp("MX", 1, "Z", "H")
ops = [Op("X", 1), mid_measurement, Op("CNOT", 1, 2), Op("CNOT", 2, 3)]

Let's break down the example to understand it better:

Function Overview: ifOp

The ifOp function is used to apply different quantum operations conditionally, depending on the outcome of a mid-circuit measurement.

Setting Up a Conditional Operation:

In the example, mid_measurement = ifOp("MX", 1, "Z", "H") defines a conditional operation.
"MX" specifies the measurement basis (here, the X basis).
The number 1 indicates that the measurement is performed on the first qubit.
Z (Z gate) and H (Hadamard gate) are the conditional operations.
The function is set up so that if the measurement result of the first qubit in the X basis is 0, the Z gate (Z) is applied. If the result is 1, the Hadamard gate (H) is applied.

Sequence of Operations:

The operations sequence is given by ops = [Op("X", 1), mid_measurement, Op("CNOT", 1, 2), Op("CNOT", 2, 3)].
Op("X", 1) applies an X gate to the first qubit.
mid_measurement is then executed, which is the conditional operation defined above.
Following the conditional operation, two CNOT gates are applied: Op("CNOT", 1, 2) entangles the first and second qubits, and Op("CNOT", 2, 3) entangles the second and third qubits.

Outcome:

The outcome of mid_measurement directly influences the state of the circuit after the measurement.
Depending on the measurement result, the circuit will have either undergone a Hadamard transformation (if the result was 0) or a Z transformation (if the result was 1) on the first qubit before proceeding to the subsequent CNOT gates.

Workout Example

Starting State: The initial state is |000⟩.
Application of X Gate: Applying the X gate to the first qubit changes the state to |100⟩.
Conditional Mid-Measurement: When the first qubit is measured in the X basis, the outcome is determined by the Born rule from a superposition state of |000⟩ and -|100⟩. Based on the measurement:
- If the result is 0, apply a Z gate. The state becomes superposition state of |000⟩ and -|100⟩.
- If the result is 1, apply a H gate. The state becomes -|100⟩.
Subsequent CNOT Operations: Applying the first CNOT gate entangles the first and second qubits, and the second CNOT gate entangles the second and third qubits. This results in either the state |111⟩ or (|000⟩ - |111⟩)/√2, each with a 50% probability due to the superposition created by the mid-measurement.

Let's test this using two different methods.

Method 1 - Simulation with a Circuit

To test the operations, we first compile the circuit and then sample it to obtain a measurement object. The compile function is used to assemble the circuit, and measure is employed to simulate the circuit's execution and generate a Measurement object.

circuit = compile(ops)
measurement = measure(circuit,1000)

After obtaining the measurement object, we can visualise the results:

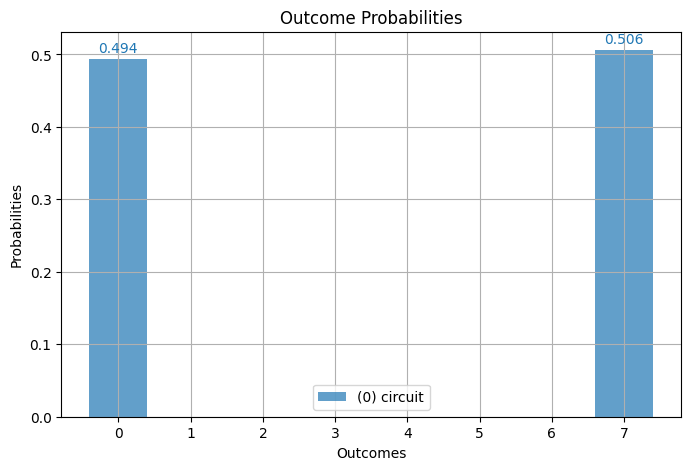

plotq(measurement)

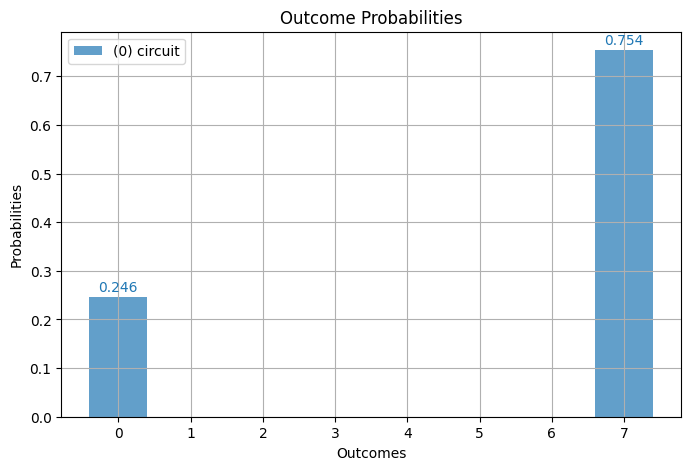

The measurement results show that half of the time, the state is on 7=|111⟩, and the other half, it is on the GHZ state (7=|111⟩ and 0=|000⟩).

Method 2 - Manual Simulation with a Quantum Simulator

Alternatively, we can manually simulate the same process using a quantum simulator. This approach provides a more hands-on understanding of how each operation affects the state of the quantum system:

state = zero_state(3) # Initial state for N=3
state=apply(state, Op("X", 1)) # Apply X on qubit 1
state=apply(state, ifOp("MX", 1, "Z", "H")) # Measure qubit 1 in X basis. Apply Z if result is 0, H if 1.
state=apply(state, Op("CNOT", 1, 2)) # Apply CNOT on qubit 1 and 2
state=apply(state, Op("CNOT", 2, 3)) # Apply CNOT on qubit 2 and 3
state # Final result: either GHZ state or |111> state.

This manual simulation helps illustrate the probabilistic nature of quantum circuits involving mid-measurements and demonstrates the creation of complex quantum states, such as the GHZ state.

7) Reset Operation on a Qubit

Overview

In this example, we demonstrate how to implement a reset operation on a qubit. This operation involves measuring a qubit and, depending on the outcome, applying a corrective operation. Specifically, if the qubit is measured and found to be in the |1⟩ state, an X gate is applied to bring it back to the |0⟩ state. We'll illustrate this concept by creating a Bell state and then resetting the first qubit.

Example 1: Reset via measurement

First, we start by preparing a Bell state. A Bell state is a maximally entangled quantum state of two qubits. It represents a perfect example of quantum entanglement and is foundational in quantum computing and quantum information theory.

# Number of qubits
N = 2

# Initialising the state vector
state = zero_state(N)

# Applying Hadamard gate to the first qubit
state=apply(state, Op("H", 1))

# Applying CNOT gate with the first qubit as control and the second as target
state=apply(state, Op("CX", 1, 2))

# Show the state of the qubits
display(state)

At this point, the system is in a Bell state, which is an equal superposition of |00⟩ and |11⟩ states. You can see this with the following code

fock_basis_create(N)

Now, we'll implement the reset operation on the first qubit. This operation involves measuring the first qubit. If the measurement result is |1⟩, we apply the X gate to flip it back to |0⟩.

# Reset operation on the first qubit
op = Op("RES", 1)
apply(state, op)

Understanding the Outcome

After the reset operation, the state of the qubits can be either |00⟩ or |01⟩. The outcome depends on the state of the first qubit at the time of measurement. If the first qubit was in the |0⟩ state (which happens with a 50% probability due to the Bell state's nature), the reset operation does nothing. However, if the first qubit was in the |1⟩ state (again, a 50% chance), the X gate flips it to |0⟩.

Since the second qubit is entangled with the first, its state is correlated. Therefore, measuring the first qubit and applying the reset operation affects the overall state of the two-qubit system.

8) Random Quantum Circuits

Overview

In this section, we explore the generation of random quantum circuits, a powerful tool for various quantum computing simulations. The circuits can consist of Clifford gates, a mix of Clifford and non-Clifford gates, and optional mid-circuit measurements in specified bases.

Generating Random Clifford Operations

Define the number of qubits (N) and the length of the quantum circuit (len), then generate a random sequence of Clifford operations:

N = 3 # Number of qubits
len = 5 # Length of the quantum circuit
random_operations = random_clifford(N, len)

Generating Mixed Random Operations

For a more diverse circuit, generate a random sequence including both Clifford and non-Clifford operations. Note that following code will generate depth=len circuit.

random_operations = random_ops(N, len)

Including Mid-Circuit Measurements

The random_clifford function can also incorporate mid-circuit measurements. This is controlled by the measure_prob parameter, which dictates the probability of a measurement occurring after each gate, and the measure_basis parameter, specifying the measurement bases (e.g., "MX", "MY", "MZ").

For instance, to create a random sequence of Clifford gates with a 20% chance of measurement in either the "MX" or "MZ" basis after each gate in a 5-qubit system:

ops = random_clifford(5, 20; measure_prob=0.2, measure_basis=["MX","MZ"])
random_circuit = compile(ops)

This function will randomly select operations from a set of Clifford gates or measurements, applying them to either single or adjacent qubits.

Visualizing the Random Circuit

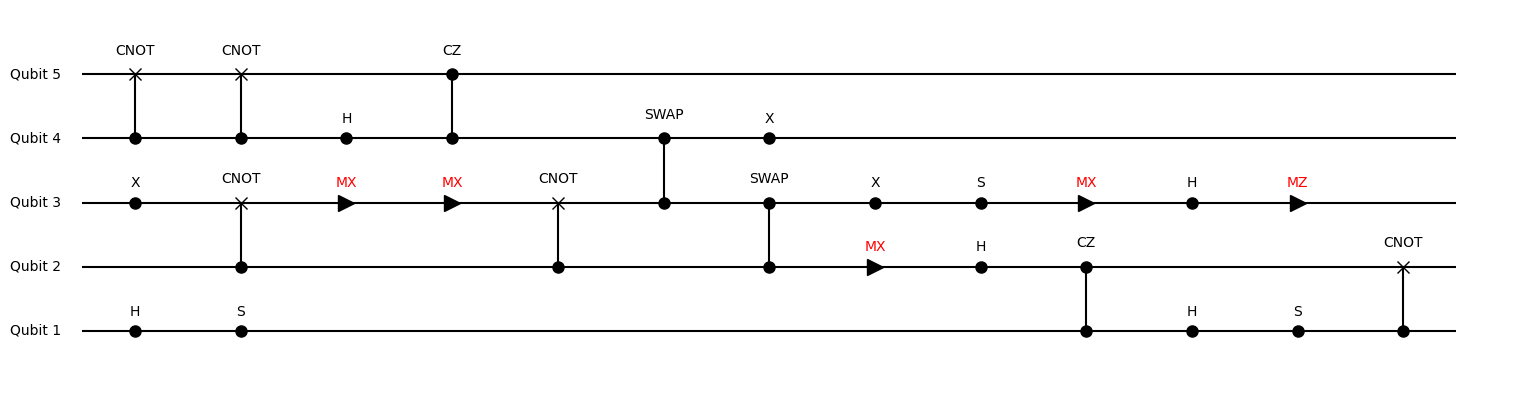

After generating the random operations, you can visualize the circuit to better understand its structure:

plotq(random_circuit)

This approach to creating and visualizing random quantum circuits showcases the versatility and capabilities of the package in simulating various quantum computing scenarios.
